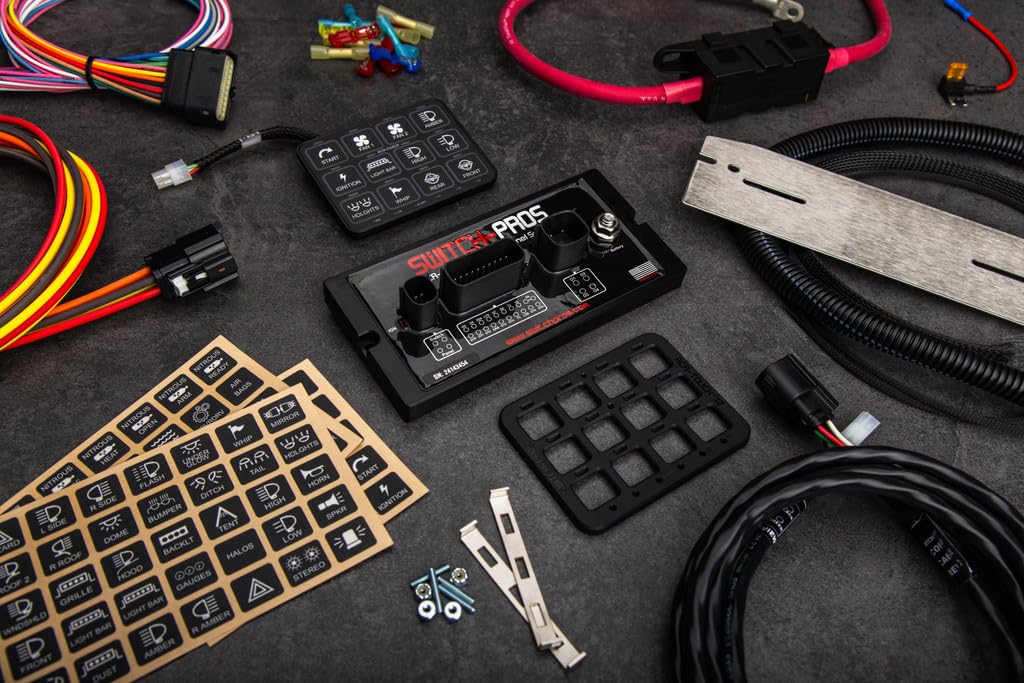

Features: 12 user-programmable switches RCR-Touch switch cover (U.S. Design Patent No. D922,969 S) Waterproof, solid state power module 150A capacity w/ 17 outputs - 4 rated @ 35A, 1 rated @ 30A, 11 rated @ 15A, 1 Low Side driver switch rated @ 2A Built-in Bluetooth - program and operate accessories w/ phone or tablet System can be used to start vehicle Switch Panel Specs: RCR-Touch (U.S. Design Patent No. D922,969 S) cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain Switch panel enclosure measures 4” L x 3” W x .375” H (US Design Patent No. D914,614 S) Splash proof w/ Polycarbonate overlay faceplate Pre-machined for factory-look installation RGB backlighting Orange LED switch indicators 6 Programmable LED Status indicators Power Module Specs: 7”L x 3.5”W x .5”H (excluding connectors) Waterproof and Solid State Underhood rating - 125° to -40°C LED Ignition Input Status Indicator Kit Also Includes: 11’ of Communication Cable between Switch Panel and Power Module Power Cable with 150A inline Circuit protection 100 User Selectable Legends included (Horizontal orientation) Installation brackets and hardware Color Coded Output wires Wire harness with waterproof, sealed automotive grade connectors Switches Can Be Programmed For: Preset Dimming function W/ MEMORY (100% to 10% brightness) Master Mode, w/ ability to turn multiple outputs On AND Off w/ one touch Every Master Switch can control up to 4 other switch outputs On-On-Off logic Touch Panel lockout On/Off or Momentary Ignition or Battery Input Flash or Strobe, w/ User-Selectable Strobe patterns and One Touch activation Automatic Power-Up upon vehicle start up Safety Lockout for specific switches Time Delay off Additional Features: No bulky relay box RGB Backlighting w/ unlimited color options
