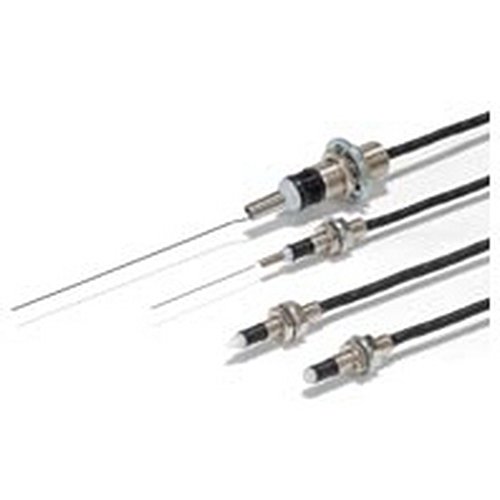

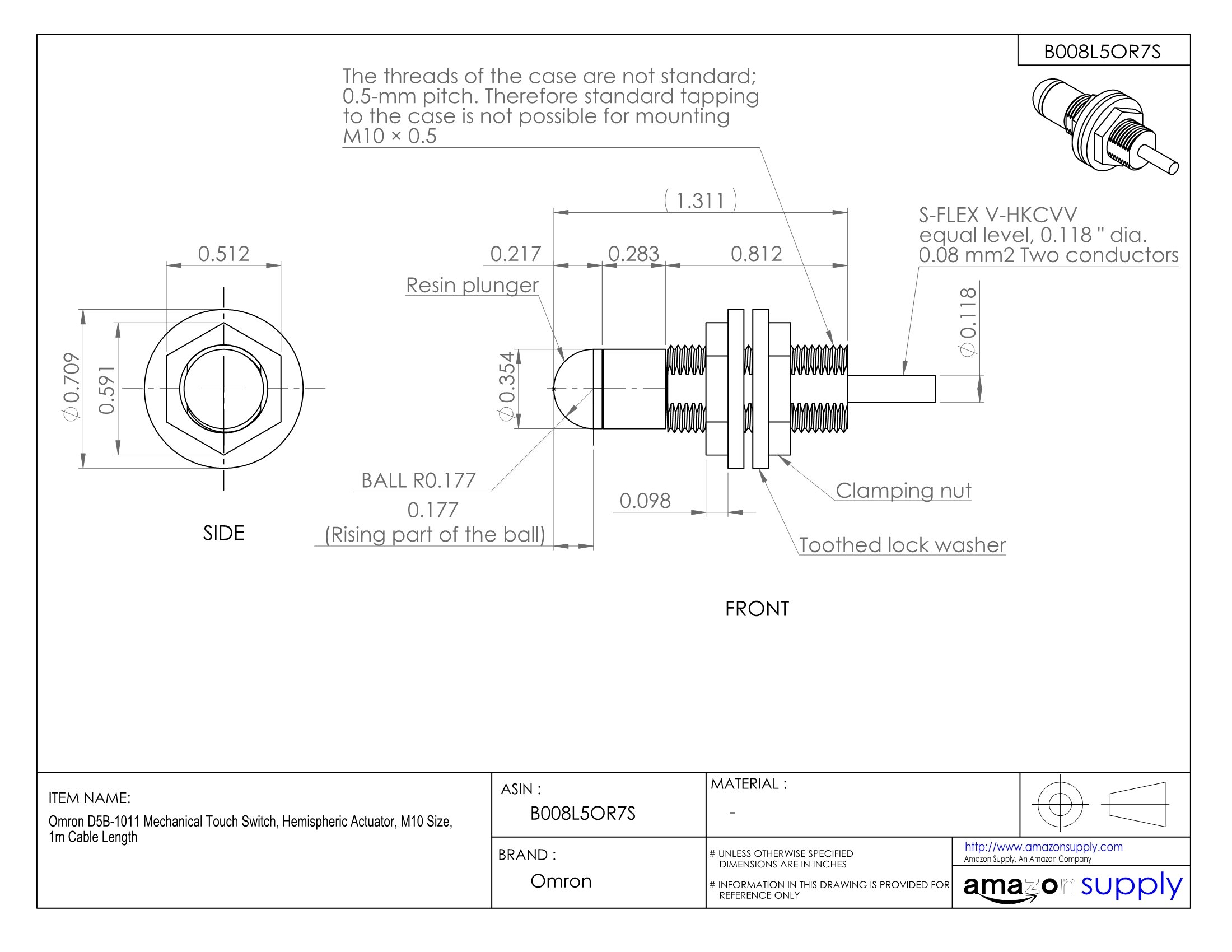

Omron D5B-1011 Mechanical Touch Switch with Hemispheric Actuator | M10 Size | 1m Cable | Industrial Automation & Control Panel Use

Tactile Switches Detect Objects from Multiple Directions. Detects object contact and operates even with a slight force. Gold plated contacts provide high contact reliability. Switches micro current/voltage loads. Long service life (10 million mechanical operations). Rated IP67 for resitance to dust, fine particles and water or oil splash. Three sizes (M10, M8, and M5) to match total travel and operating force requirements. Three actuator types: hemispheric, cone shaped, and wobble-stick type. Pre-wired with 1, 3, or 5m Cable.

Detects object contact from multiple directions and operates even with a slight force.

Slow action switching mechanism used. Movement differential as small as 0.01mm assures high accuracy of detection.

Gold plated contact with coil spring capable of switching micro current/voltage load while providing high contact reliability.

High resitant to dust, fine particles and water or oil splash, conforming to IP67.

Three size (M10, M8, and M5) and three types of actuators (hemispheric, cone shaped, and wobble stick).
