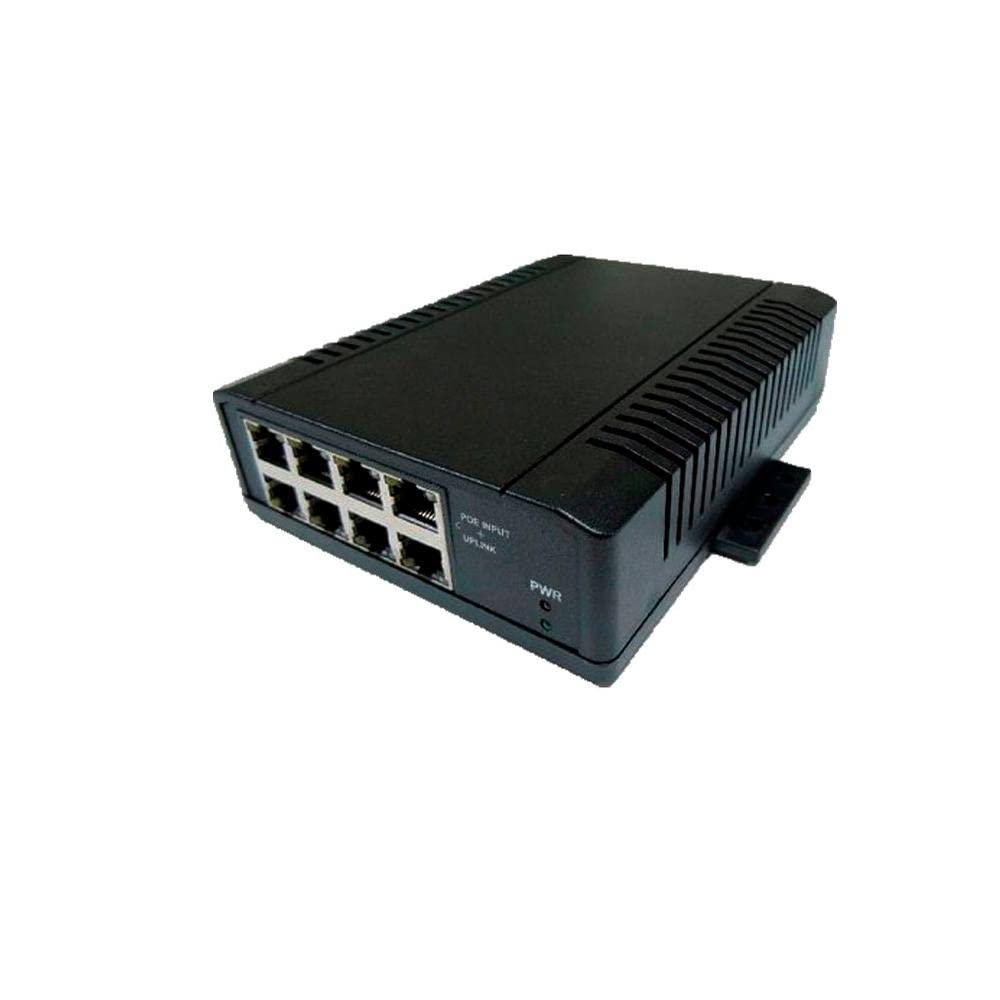

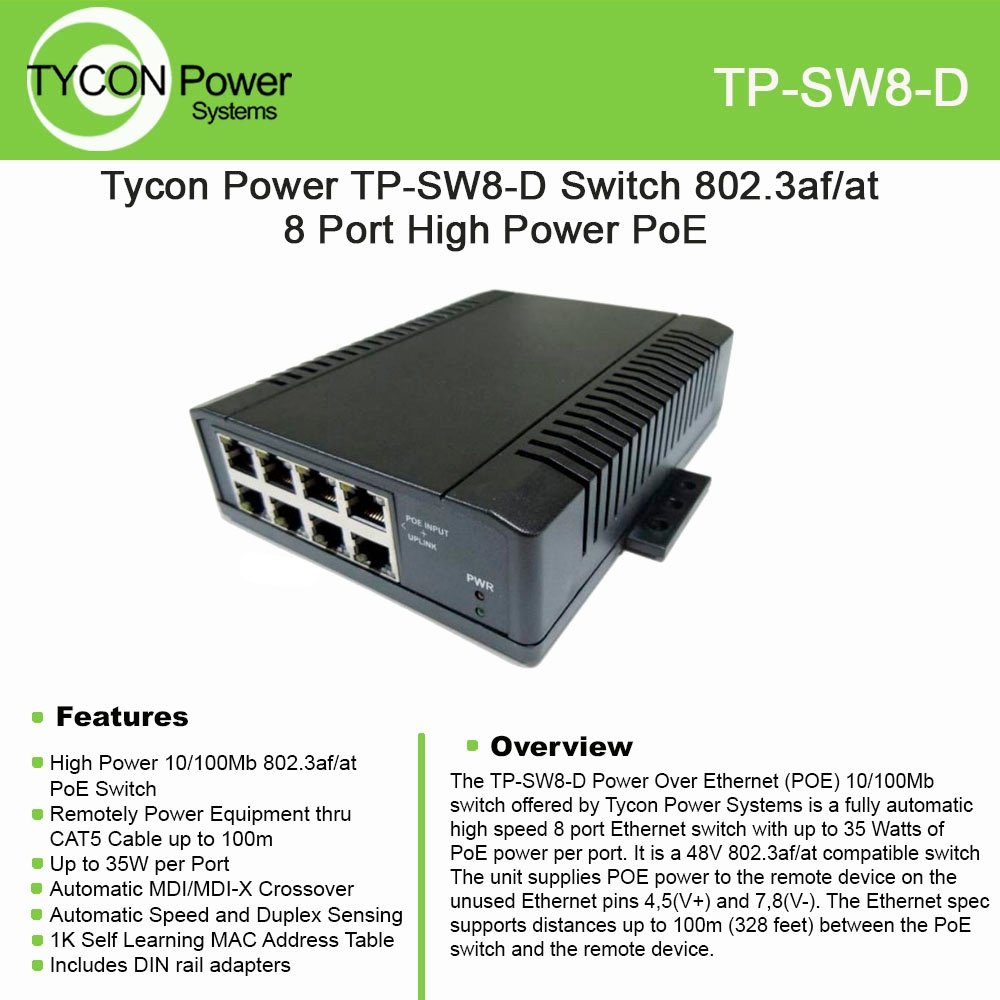

Tycon Power TP-SW8-D 8 Port Gigabit POE Switch with 802.3af/at Support - Ideal for IP Cameras, VoIP Phones, and Wireless Access Points in Home & Office Networks

The TP-SW8-D Power over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power is a fully automatic high speed 8 port Ethernet switch. The -NC version is a passive PoE model for devices which are not 802.3af/at compliant. It has a 2 channel 802.3at input for 70W max PoE input. Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device. 18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources. Note: no power supply included – requires 46-57V DC power source.

The TP-SW8-D Power over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power is a fully automatic high speed 8 port Ethernet switch

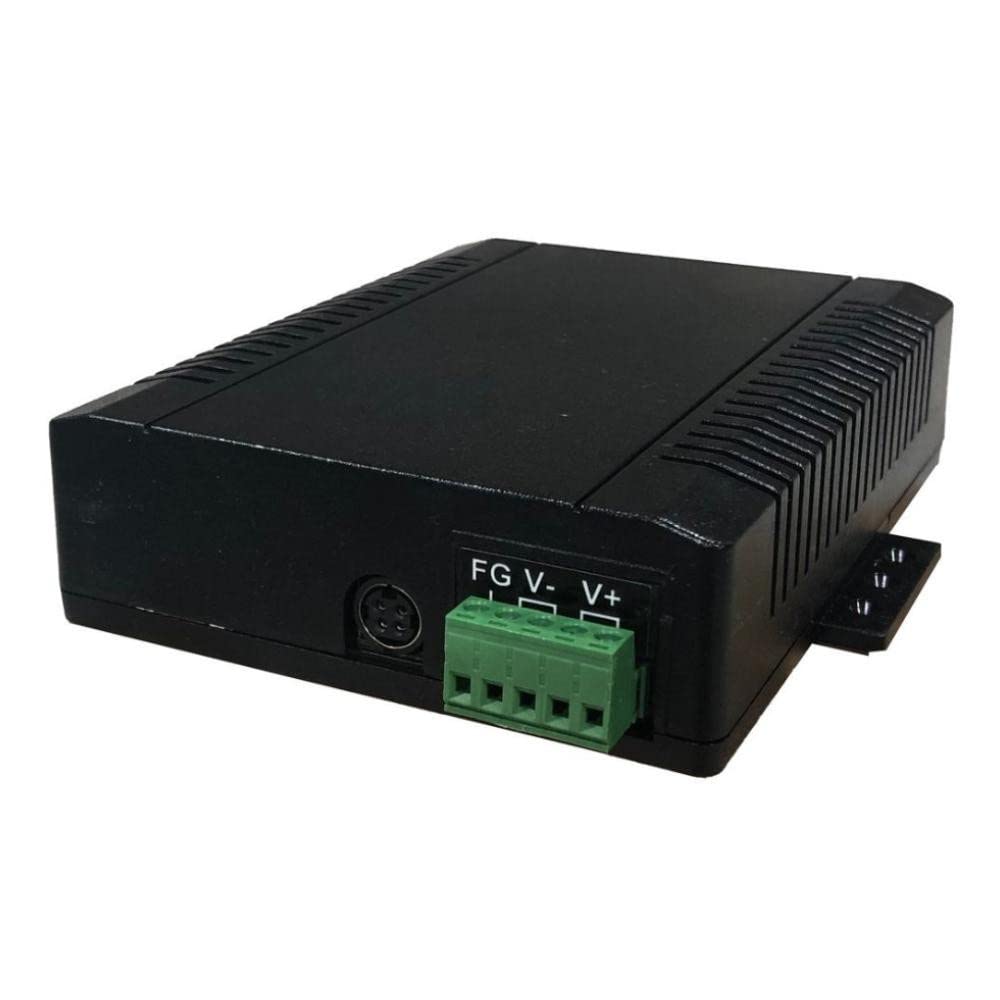

46V to 58VDC Wire Terminal, Accepts 2/4pair PoE power via Uplink Port

35W per Port out, Total Power = Total Power Available at Input

Supplies power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-)

Applications Wireless Access Points and Client Devices; IP Phone and Security Camera Systems; Power multiple devices from 1 data cable
