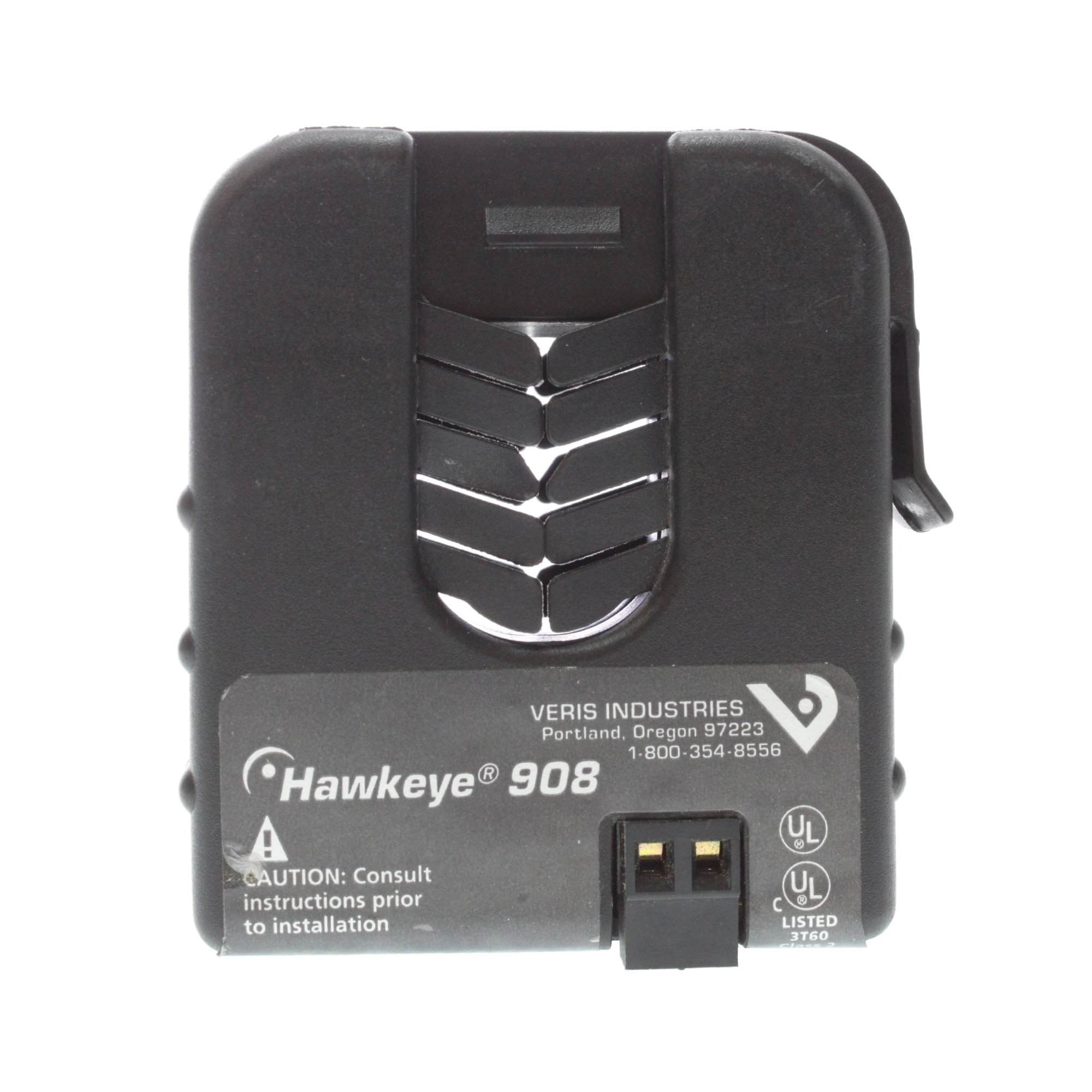

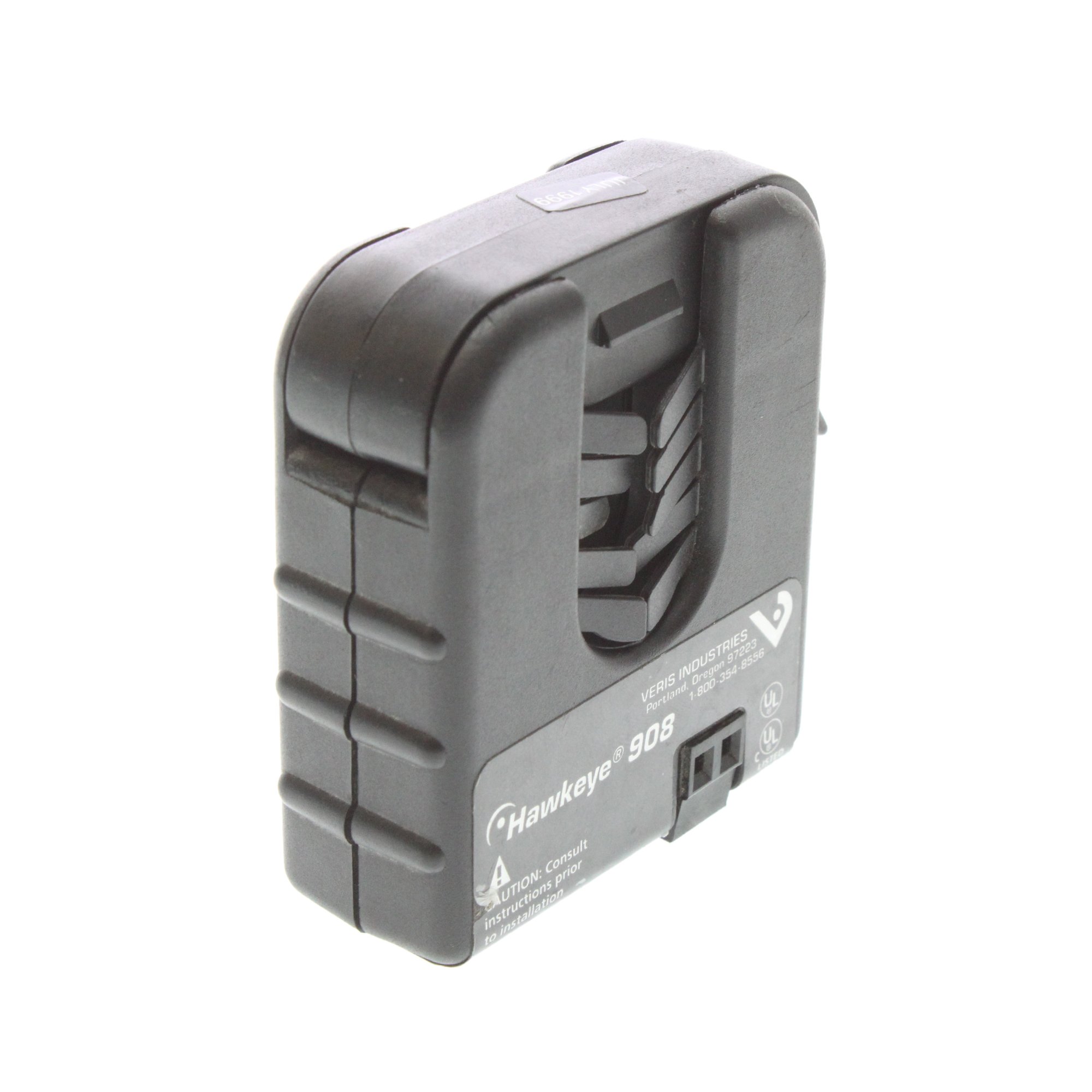

Veris H908 Split-Core Adjustable Normally Open Current Switch - for HVAC Systems, Industrial Equipment & Energy Monitoring Applications

Sensor Power Induced from monitored conductor Insulation Class 600VAC RMS (UL) 300VAC RMS (CE)Frequency Range 50/60 HzTemperature Range -15° to 60°C (5° to 140°F)Humidity Range 10-90% RH non-condensingHysteresis 10% (typical)Terminal Block Maximum Wire Size 14 AWGTerminal Block Torque (nominal) 4 in-lbsAgency Approvals UL 508 open device listing CE: EN61010-1:2001-02 CAT III deg. 2 basic insulation Do not use the LED status indicators as evidence of applied voltage.For applications requiring double or reinforced insulation please contact the factory.

H908 current switches offer high performance, with a wide array of amperage range options

These products can accurately detect belt loss, coupling shear, or other mechanical failure on loads from 1/5 to 100HP

APPLICATIONS Detecting belt loss, coupling shear, and mechanical failure Verifying lighting circuit and other electrical service run times Monitoring status of industrial process equipment Monitoring status of critical motors (compressor, fuel, etc)

High performance devices Small size

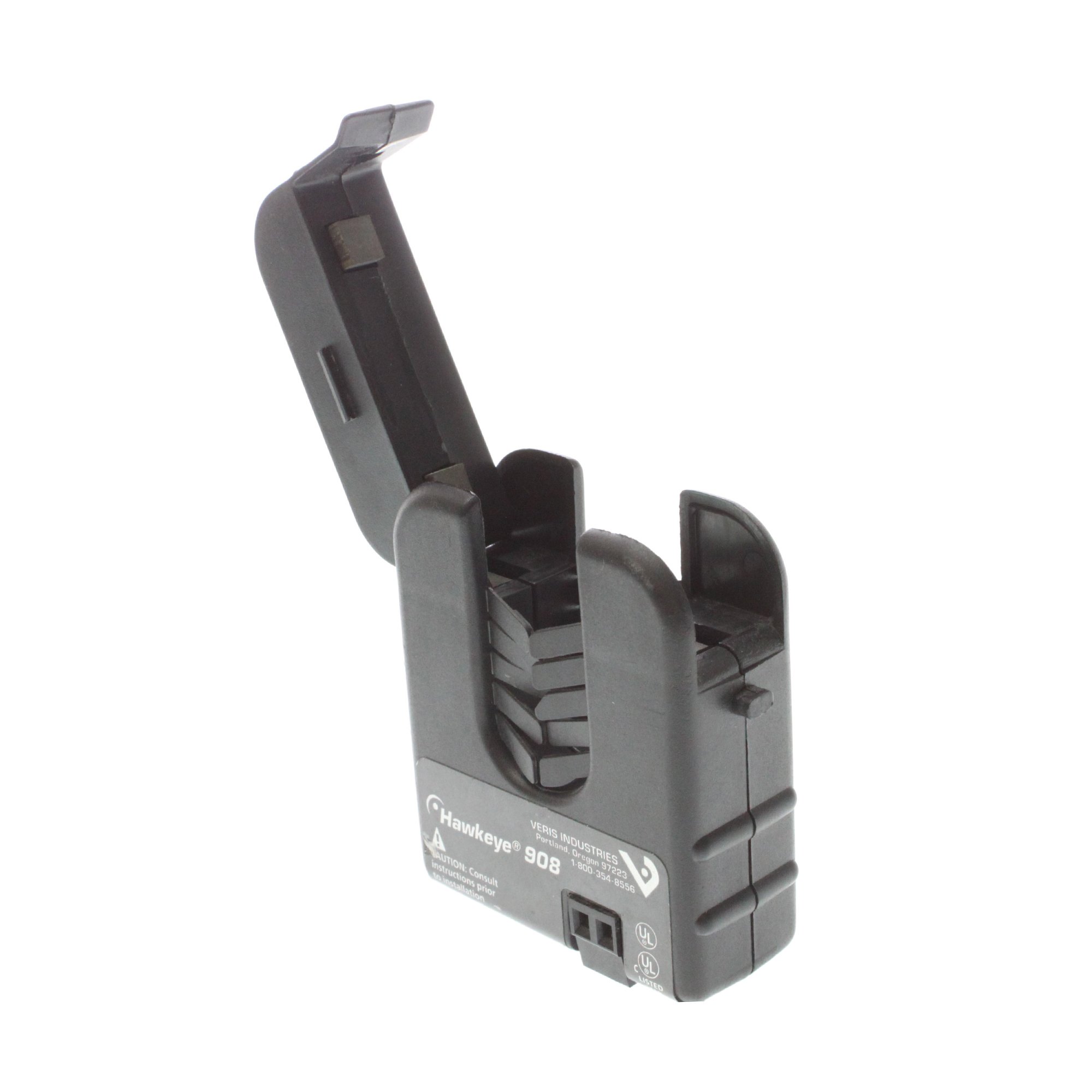

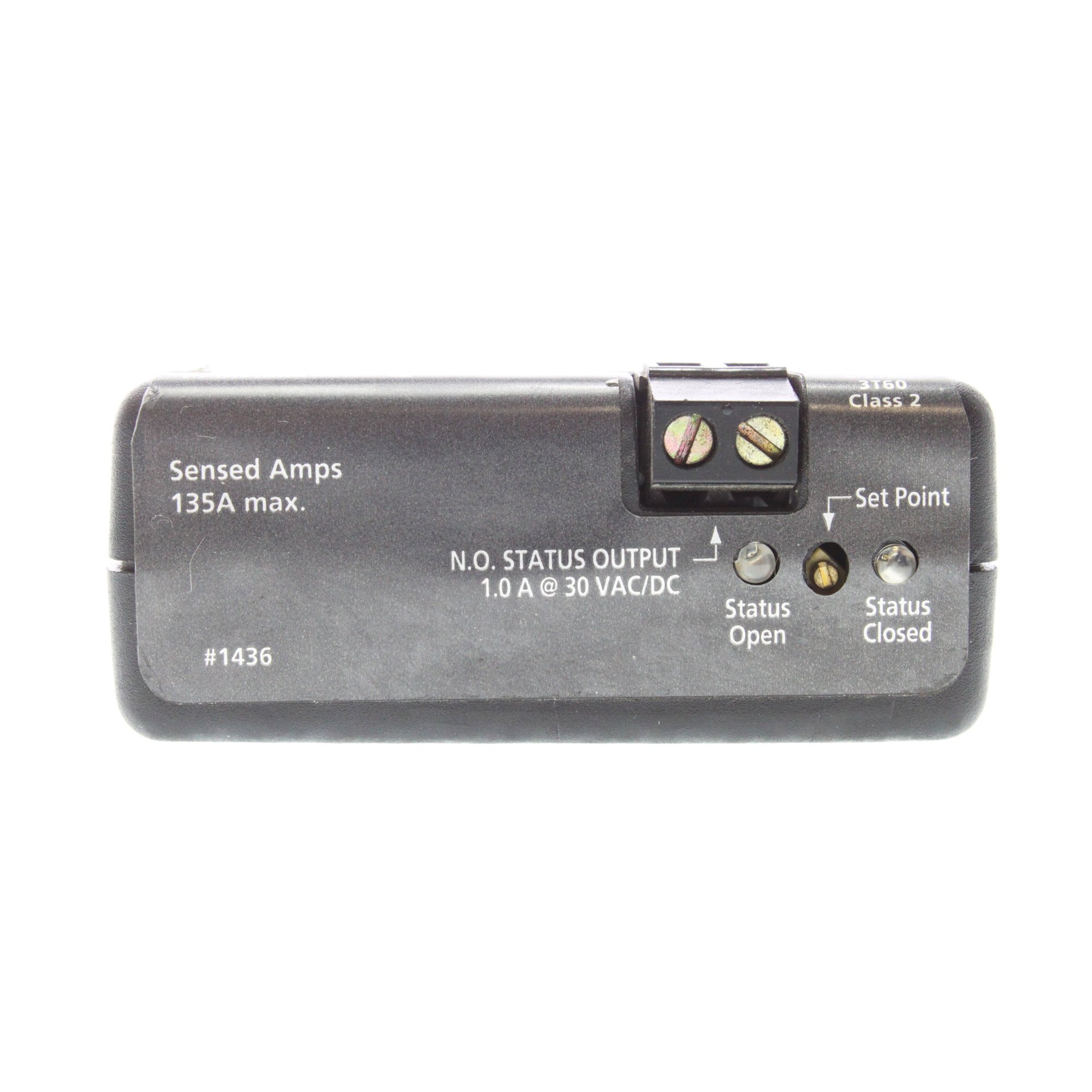

Fits easily inside small enclosuresSelf-gripping iris on the split-core housing for easy installation Status LEDs for easy setup and local indication Bracket can be installed in three different configurations 1 Amp status output for increased application flexibility All devices are 100% solid state and polarity insensitive, with a 5-year warranty
